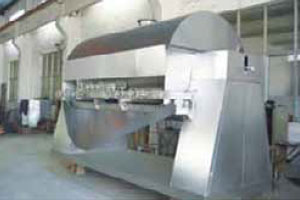

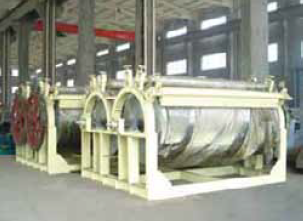

HG Series Cylinder And Scratch Board
HG series cylinder operation principle of desiccator to let liquid or mud form supplies form the membrane in steam or other hot cylinder surface that carrier heated, and dry to finish while the cylinder turns around, is it blow handle of a knife product is it get off to blow to utilize, the cylinder surface emerges to contact and form the membrane to carry on with raw materials drily again.
Detailed description
Features：
● As heat source, heat area to be heavy with steam or heat conduction, high thermal efficiency have, it is even to heat.
● It is dry speed the heavy, tube there is with spreading quality course material heat transfer of membrane not wet at wall from on direction not outside the unanimous, the temperature gradient is large, make the material membrane display and keep the intensity of higher evaporation.
● Dry time is short, it is generally about 7-30 seconds, suitable for the temperature sensing supplies.
● Easy to operate, it is convenient to maintain.
Description：
HG series cylinder operation principle of desiccator to let liquid or mud form supplies form the membrane in steam or other hot cylinder surface that carrier heated, and dry to finish while the cylinder turns around, is it blow handle of a knife product is it get off to blow to utilize, the cylinder surface emerges to contact and form the membrane to carry on with raw materials drily again.
Application：
Such processes as the HG series cylinder desiccator is used in such trades as the food, chemical industry, medicine, etc. viscidity, lotion pastel supplies film-making, dry extensively.
Technical parameters：|
规格 |
滚筒尺寸（mm） |
有效加热面积（m2） |
干燥能力（kg/h） |
蒸汽耗量（kg/h） |
电机功率（kw） |
外形尺寸（mm） |
重量（kg） |
|
HG-600 |
Φ600×800 |
1.12 |
40-70 |
100-175 |
1.1 |
1700×800×1500 |
850 |
|
HG-700 |
Φ700×1000 |
1.65 |
60-90 |
150-225 |
2.05 |
2100×1000×1800 |
1210 |
|
HG-800 |
Φ800×1200 |
2.26 |
90-130 |
225-325 |
3.75 |
2500×1100×1980 |
1700 |
|
HG-1000 |
Φ1000×1400 |
3.30 |
130-190 |
325-475 |
4.75 |
2700×1300×2250 |
2100 |
|
HG-1200 |
Φ1200×1500 |
4.24 |
160-250 |
400-625 |
4.75 |
2800×1500×2450 |
2650 |
|
HG-1400 |
Φ1400×1600 |
5.28 |
210-310 |
525-775 |
6.25 |
3150×1700×2800 |
3220 |
|
HG-1600 |
Φ1600×1800 |
6.79 |
270-400 |
675-1000 |
6.25 |
3350×1900×3150 |
4350 |
|
HG-1800 |
Φ1800×2000 |
8.48 |
330-500 |
825-1250 |
8.6 |
3600×2050×3500 |
5100 |
|
HG-1800A |
Φ1800×2000 |
10.60 |
420-630 |
1050-1575 |
8.6 |
4100×2050×3500 |
6150 |
注：部分参数设计时视不同物料有所调整，以设计为准。
