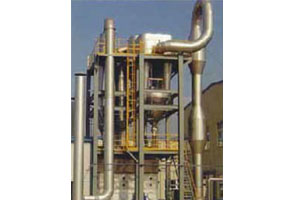

QG\GFF\FG Series Air steam Dryer
QG pulse air steam drier is large hath drier, it adopt instant drying principle, use the hot air which moving fast, drive damp raw material and make it float on the hot air, this strengthen the drying process.
Detailed description
Features：
QG pulse air steam drier of our company introduces into the most advanced techniques and machines from the United Slates, has reached the advanced level of international, the equipment has many advantages listed below high in automatic degree, 1ittle in investment, low in energy consumption, little occupy in air of factory and work power, wide in applied surface, it is a perfect modern equipment．
Principle：
Air stream dryer can remove moisture from the surface of raw materials of granules or powder that are easy to dehydrate.Under the air stream drying process;the quality of finished products can be controlled to the best because of raw material stays a short time.The dryer of our factory is developed on the basis of basic spec to add a reinforced device of steeples speed exchange.When the humidity raw material is fed through screw,it is mixed with air fully and is broken and pushed by rotating knives,the surface of raw material is broken to fine granule.It moves to the outlet at the same time of drying.Finally it enters into drying pipe under the absorbing of air force,it is dried further there.The humid and heavy granule that is not absorbed by air is broken and dried continuously till entering the drying pipe.
The working principle is as follows:the drying of raw material is divided into two steps.First,raw material is dried with the mixing air of the tail air from the second dry and compensating hot air under positive pressure.The dried tail air is discharged to atmosphere.Second,the dried semi-finished product is carried to the second drying with fresh hot air under negative pressure. The finished product is measured and packaged.The used high temperature and low moisture tail air is used for the first grade drying.In this way the good circulating process is completed.The supplementary hot air may be adjusted freely.Therefore the machine has a wide application.
Application：
The equipment is wide used for drying granule and powder raw materials in the field of foodsluff, chemical, pharmacy, construction materials, plastic industry. For example: starch, finish powder, salt, 1ess, gluten, feed, plastic resin， coal powder. A.B.C benzoic acid, 2.3 acid, PVC, polypropylene． Sodium sulfat e．sodium pyrosulfite and so on. Our company can consultation with the drier．also can design and manufacture non-finalize drier．
The equipment is widely used for drying granules and powder raw materials from foodstuff, chemical, pharmaceutical and construction materials industries. The products used this kind of equipment for drying are as follows; starch, glucose, fish powder, sugar, edible sugar, lees, feed, plastic resin, coal powder, dyestuff and so on.| 型号 | 蒸发水份 kg/h | 装机功率 kw | 占地面积 m2 | 高度 m |
| QG50 | 50 | 7 | 20 | 14 |
| QG100 | 100 | 13 | 32 | 14 |
| QG200* | 200 | 21 | 40 | 15 |
| QG250 | 250 | 24 | 64 | 15 |
| QG500 | 500 | 43 | 96 | 18 |
| QG1000* | 1000 | 100 | 120 | 18 |
| QG1500* | 1500 | 150 | 200 | 20 |
| 型号 | 蒸发水份 kgH2O/h | 装机功率 kw | 占地面积 m2 | 主塔高度 m |
| QFF-50 | 50 | 12 | 16 | 11 |
| QFF-100 | 100 | 25 | 26 | 13 |
| QFF-200 | 200 | 44.5 | 35 | 16 |
| QFF-250 | 250 | 53.5 | 51 | 18 |
| QFF-500 | 500 | 67.5 | 78 | 19 |
| QFF-1000 | 1000 | 150 | 105 | 22 |
| QFF-1500 | 1500 | 183 | 120 | 23 |
注：1、水分蒸发量是以进风温度为180℃、出风温度为80℃时每小时蒸发的水分；2、除以上型号外可为用户做特殊设计。3、以上装机容量为标准配套，根据物料不同功率会有变动。
| 型号 | 蒸发水份 kgH2O/h | 装机功率 kw | 占地面积 m2 | 主塔高度 m |
| QFF-50 | 50 | 12 | 16 | 11 |
| QFF-100 | 100 | 25 | 26 | 13 |
| QFF-200 | 200 | 44.5 | 35 | 16 |
| QFF-250 | 250 | 53.5 | 51 | 18 |
| QFF-500 | 500 | 67.5 | 78 | 19 |
| QFF-1000 | 1000 | 150 | 105 | 22 |
| QFF-1500 | 1500 | 183 | 120 | 23 |
注：1、水分蒸发量是以进风温度为180℃、出风温度为80℃时每小时蒸发的水分；2、除以上型号外可为用户做特殊设计。3、以上装机容量为标准配套，根据物料不同功率会有变动。
