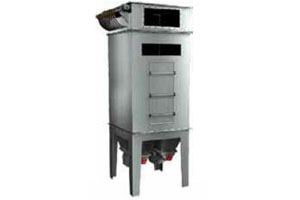

MC series pluse filter with hop-pocket
The air stream containing dust passes through low box from air inlet.
Detailed description
Description：

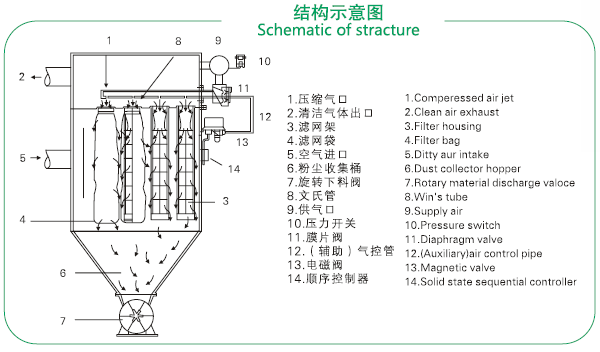

The air stream containing dust passes through low box from air inlet. Parts of it deposit When light particle dust is floated. It is retarded in the bag. The purified air penetrates the filtrating bag and passes into the up box through venture and exhausts from outlet. The accumulated powder dust on the outer wall of filtering bag.
Application：
The equipment is widely used for ventilation and degusting and recovering powder dust of metallurgy industry. casting industry, mine, chemical industry, and pharmaceutical industry, construction material industry, fed industry and grain processing industry and so on.
Technical parameters：
| 参数/型号 | MC24 | MC36 | MC48 | MC60 | MC72 | MC84 | MC96 | MC120 | |
| 过滤面积(m2 ) | 18 | 27 | 36 | 45 | 54 | 63 | 72 | 90 | |
| 滤袋数量(只) | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 120 | |
| 过滤风速(L/m2.s) | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | |
| 过滤风量(m3/h) | 1300-2600 | 1950-3900 | 2600-5200 | 3240-6480 | 3900-7800 | 4550-9100 | 5200-10500 | 6500-13000 | |
| 最大外形尺寸 (mm) | 长L | 1000 | 1400 | 1800 | 2200 | 2600 | 3000 | 3560 | 4360 |
|
宽×高 W×H |
1450×3700 | 1450×3660 | 1450×4100 | ||||||
| 清灰装置 | 脉冲阀数量 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| 耗用压缩空气量(m3) | 0.07-0.30 | 0.11-0.40 | 0.15-0.50 | 0.18-0.60 | 0.22-0.60 | 0.25-0.90 | 0.29-0.90 | 0.37-0.90 | |
| 压缩空气压力(kg/cm2) | 5-7 | ||||||||
