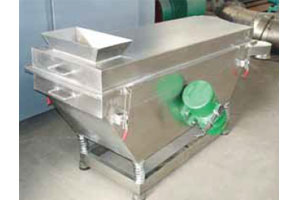

Model FS Series Square Sieve
It adapts quick disassembling handle at the upper part of this machine. The handle connects the machine as the all and the one.
Detailed description
Features：
It adapts quick disassembling handle at the upper part of this machine. The handle connects the machine as the all and the one. Its upper cover is seal fully. Therefore it prevent from the dust flying caused by vibration during the period of sieving. The vibration motor is installed under the sieve. Mean while it adapts spring to reduce vibration. So the machine will operate at stable state. The stand is adjustable, so the inclined angel of sieve that is sieving can be adjusted. The best sieving effect can be got.
Description：
FS series square sieve is new generation sieving equipment researched and developed and manufactured by our company in 1 999. Because of its unique characteristics, i.e.high effective, energy saving, low noise and so on, customers welcome it deeply, it is wide suitable for sieving raw material contenously of pharmaceutical industry, chemical industry, foodstuff industry and so on. 1-4 layer of sieve can be installed in accordance with the requirements of customers. This machine has many advantages listed below: simple in structure, convenient in operation, compact, 1arge amount corrosion resistant, low trouble, convenient in assembling and disassembling, no dead corne in cleaning, no dust and so on.
Technical parameters：|
model |
Power (kw) |
Screen surface inclination |
Voltage (V) |
Screen surface layers |
Number of mesh (mesh) |
Dimensions (mm) |
Weight (kg) |
Yield (kg / h) |
|
FS0.6 × 1.5 |
0.4 × 2 |
0-45 ° adjustable adjustable |
380 |
1-4 |
6-120 |
1500 × 700 × 700 |
550 |
150-1500 |
|
FS0.65 × 2.0 |
0.4 × 2 |
0-45 ° adjustable adjustable |
380 |
1-4 |
6-120 |
2100 × 750 × 780 |
650 |
160-2000 |
