 Home / ProductEYH Series Two Dimensional Mixer

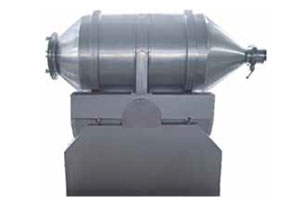

EYH Series Two Dimensional Mixer

EYH Series Two Dimensions mixer mainly consists of three big parts. rotating cylinder,swinging rack and frame.
More

Detailed description

Features:
The rotating cylinder of EYH Two Dimensionals Mixer can achieve two motions at the same time. One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack. Materials to be mixed will be rotated when the cylinder is rotating,and will be mixed from left to right and vice versa when the cylinder is swinging.As the result of these two motions,materials can be mixed fully in a short time. EYH Two Dimensions Mixer is suitable for mixing of all powder and granule materials.
Principle:
EYH Series Two Dimensions mixer mainly consists of three big parts. rotating cylinder,swinging rack and frame. The rotating cylinder lies on the swinging rack,supported by four wheels and its axial fixation is done by two stop wheels Two of four wheels are driven by rotating system to make the cylinder rotate. The swinging rack is driven by a set of crandshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.
Technical parameters:

规格型号

容积(L)

装料系数

装料重量(kg)

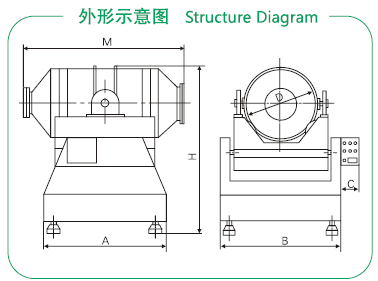

外形尺寸(mm) 功率(kw)

A

B

C

D

M

H

转动

摆动

EYH100

100

50

40

860

900

200

400

1000

1500

1.1

0.75

EYH300

300

150

75

1000

1100

200

580

1400

1650

1.1

0.75

EYH600

600

300

150

1300

1250

240

720

1800

1850

1.5

1.1

EYH800

800

400

200

1400

1350

240

810

1970

2100

1.5

1.1

EYH1000

1000

500

350

1500

1390

240

850

2040

2180

2.2

1.5

EYH1500

1500

750

550

1800

1550

240

980

2340

2280

3

1.5

EYH2000

2000

1000

750

2000

1670

240

1100

2540

2440

3

2.2

EYH2500

2500

1250

950

2200

1850

240

1160

2760

2600

4

2.2

EYH3000

3000

1500

1100

2400

1910

280

1220

2960

2640

5

4

EYH5000

5000

2500

1800

2700

2290

300

1440

3530

3000

7.5

5.5

EYH10000

10000

5000

3000

3200

2700

360

1800

4240

4000

15

11

EYH12000

12000

6000

4000

3400

2800

360

1910

4860

4200

15

11

EYH15000

15000

7500

5000

3500

3000

360

2100

5000

4400

18.5

15

Material specific gravity by 0.6g / cm3 for the meter, if exceeded, please specify when ordering.
