 Home / ProductWLDH Series Horizontal Ribbon Mixer

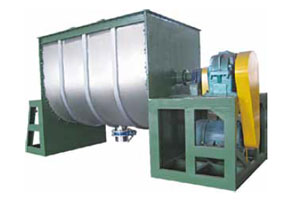

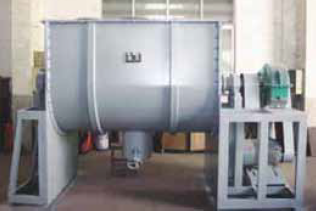

WLDH Series Horizontal Ribbon Mixer

This machine is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers.
More

Detailed description

Features:
Big coefficient of loading, small occupied area.
Application:
The ribbon mixer is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.
Technical parameters:

型号规格(m3)

WLDH-0.1 WLDH-0.3 WLDH-0.5 WLDH- 1.0 WLDH-1.5 WLDH-2.0 WLDH-3.0 WLDH-4.0 WLDH-6.0 WLDH-8.0 WLDH-10
一次混合(kg) 30-50 100-150 200-300 400-600 600-900 800-1200 1200-1800 1600-2400 2400-3600 3200-4800 4000-6000
装机功率(kw) 1.5-4 3-5.5 4-11 7.5-15 11-18.5 15-22 18.5-30 22-37 37-55 37-55 45-75
设备重量(kg) 420 850 1060 1790 1900 2750 3500 4280 5300 6800 7800

上述产品按客户要求由A3钢或不锈钢制造。
