Detailed description

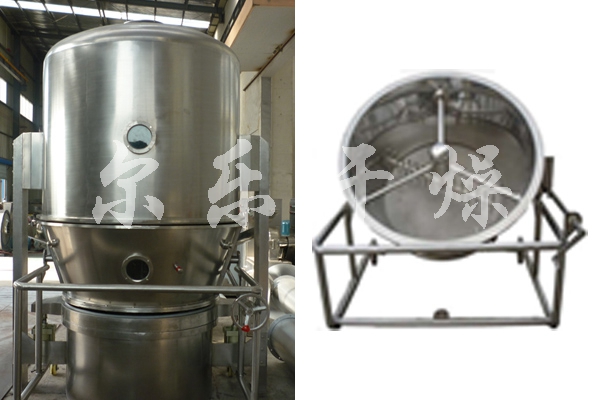

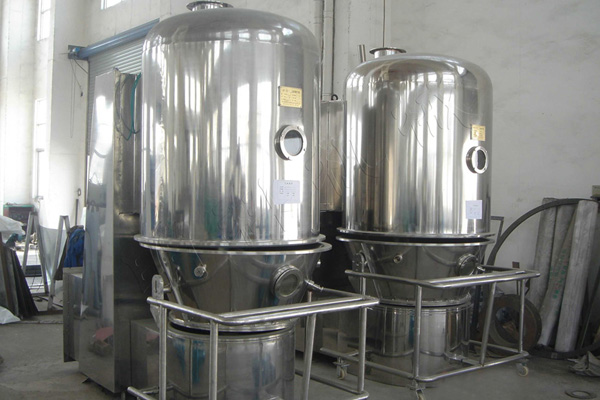

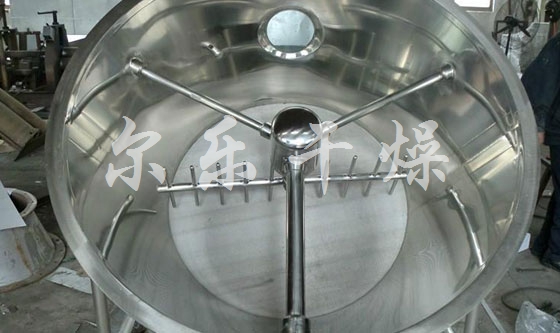

principle: After the air is purified and heated, introduced from the bottom Fan, hopper through the hole plate.In the studio, by mixing and fluidization negative pressure is formed, after the water is evaporated and removed rapidly, fast drying material. application: ● Mechanism screw extrusion particles, rock particles, high speed mixing wet granules. ● medicine, food, feed, chemical and other fields wet granules dried and powdered materials. ● large particles, small block, sticky block granular materials. ● dry material volume change konjac, polyacrylamide. Features: ● fluidized bed is round structure, to avoid dead ends. ● the hopper stirring to avoid agglomeration of raw material and forming canal of flow when dry. ● use Overturning discharge, facilitate prompt and thorough, can also be designed as request access to material systems. ● closed negative pressure operation, the gas passes through the filter. Easy to operate, easy to clean, is in line with 'GMP' requirements of the ideal equipment. ● drying speed, temperature uniformity, each batch of drying time is generally 20-30 minutes. Technical Parameters:

project		unit	model
Feeding		kg	60	100	120	150	200	300	500
Fan	Wind	m 3 / h	2361	3488	4000	4901	6032	7800	10800
	Wind pressure	MMH 2 O	594	533	533	679	787	950	950
	power	kw	7.5	11	15	18.5	twenty two	30	45
Mixing power		kw	0.55	0.55	0.55	0.55	0.55	1.5	2.2
Stirring speed		r.p.m	11
Steam consumption		kg/h	141	170	170	240	282	366	451
Operating time		me	15-30 (depending on material availability)
Host height	Square	mm	2750	2850	2850	2900	3100	3300	3650
	Round	mm	2700	2900	2900	2900	3100	3600	3850
