Detailed description

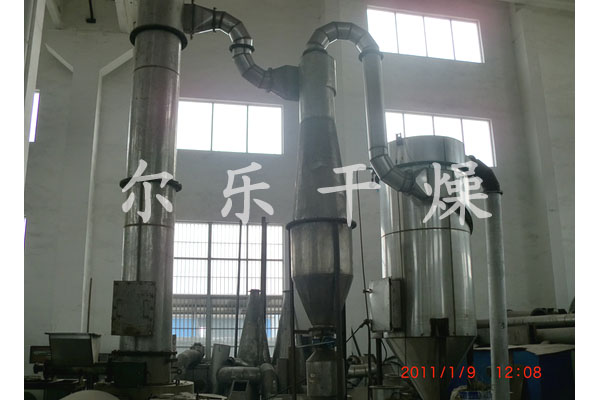

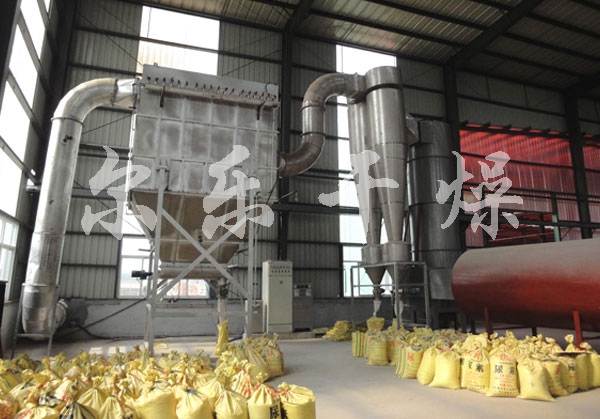

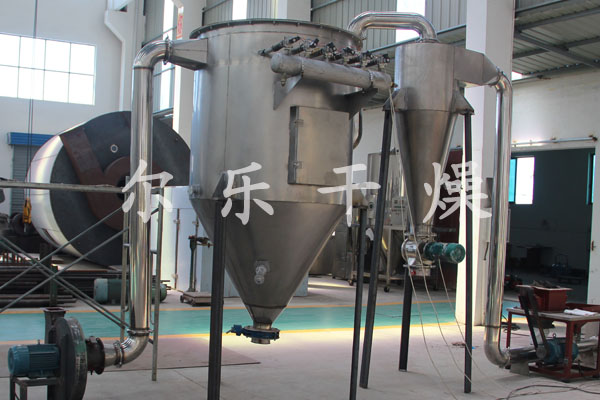

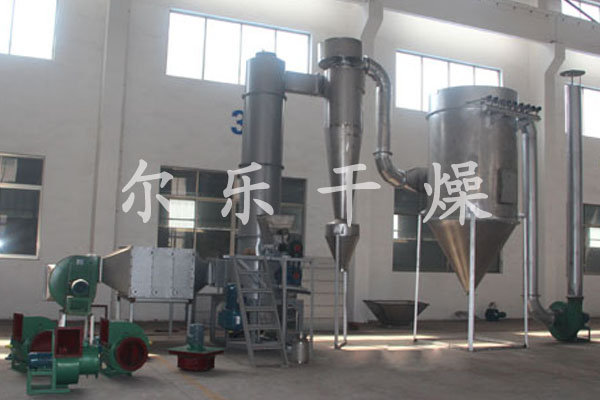

Overview: XZG series rotary flash dryer is my factory in the introduction, absorption of foreign advanced technology, successfully developed a new type of drying equipment. The machine advanced technology, reasonable design, compact structure, wide application, production capacity, product quality, high efficiency, energy saving, in a device drying, crushing, screening once completed, to eliminate environmental pollution, machine performance to the international advanced level of technology.

Principle: Hot air inlet with suitable atomizing speed enter from the bottom of drier stirring and crushing and drying chamber, the material exerts strong shearing, blowing, floating and rotating effect material by centrifuge, shearing, impacting and friction dividend micronized strengthen the heat and mass transfer. At the bottom of drier, wetter particles larger group under the action of the agitator is mechanically crushed, low moisture content, particle size smaller particles are rotating airflow entrained rise further dried during ascent. Since the gas-solid flow in rotating and the inertia of the solid phase is greater than the gas phase, the larger the relative velocity between solid and gas phases, and strengthen the heat and mass transfer between two phases, so it strengthens the process. Features: ● charging device for a variety of selection, continuous and stable feeding, intermediate process does not produce bridging phenomenon. ● bottom of the dryer to set a special cooling device, to avoid the deterioration of the material generated at the bottom of the phenomenon of high-temperature region. ● special pressure seal and bearing cooling device, effectively extending the life of the transmission part. ● special air distribution system, reducing the resistance of the device, and provides effective treatment capacity dryer. ● drying chamber equipped with grading ring and swirl sheet material fineness and final moisture adjustable. (Such as calcium carbonate final moisture may regulator% to ≤0.1) ● relative to other drying methods, can effectively increase the proportion of materials. ● gas inside the drying chamber to the high-speed, short residence time, effectively prevent the wall material viscosity and heat-sensitive materials deterioration phenomenon, to achieve efficient, fast, small equipment, large-scale production. Adaptation Materials: ● inorganic: boric acid, calcium carbonate, calcium hydroxide, copper sulfate, iron oxide, barium carbonate, antimony trioxide, metal hydroxides, various heavy metal salts, synthetic cryolite and so on. ● Organic compounds: atrazine (pesticides), cadmium laurate, benzoic acid, germicide, sodium oxalate, cellulose acetate and the like. ● ceramic: kaolin, silica, clay. ● dye classes: anthraquinone, black iron oxide, indigo pigments, butyric acid, zinc sulfide, various azo intermediate. ● Food: soy protein, gelatinized starch, distillers grains, wheat, sugar, wheat starch.

Technical specifications:

model	XZG 2	XZG 4	XZG 6	XZG 8	XZG 10	XZG 12	XZG 16	XZG 20
Host ID mm	200	400	600	800	1000	1200	1600	2000
Wind the M 3 / H	350-500	1150-2000	2450-4500	4450-7550	7000-12500	10000-20000	18000-36000	28200-56500
Evaporation of water kg / h	12-17	40-70	80-150	150-250	230-4250	300-600	600-1000	1000-1500
Maximum capacity kw	10	20	40	65	85	105	150	230
Maximum height m	4.0	4.8	5.8	6.5	7.1	7.8	8.8	10.1
Area m 2	15	20	28	35	40	52	80	150

Note: 1 is the amount of water evaporation into the air temperature was 1 80 O C, the air temperature is 80 O C evaporated water per hour, 2. In addition to the above model for outside users to make a special design, 3. The above installed capacity standard package, according to different materials can significantly reduce the power package. Material handling and characteristics (type 6 flash as a benchmark)

Material name	Stearate	Aluminum hydroxide	Zinc carbonate	Monosultap	TMTD	DSD acid	Red iron oxide	Antimony oxide	Cuprous chloride	White is too dark
Inlet air temperature O C	150	180	150	120	140	150	200	180	200	280
First% moisture content	80	55	80	30	65	60	60	45	30	85
Final moisture content%	0.5	1.5	1.0	1.0	0.5	0.5	0.5	1.0	3.0	5.0
The actual drying capacity kg / h	140-160	250-280	130-170	80-110	80-120	80-120	300-350	280-320	290-310	250-300

Material name	Accelerant	Oil-soluble ink	Metabolic acidosis MnZn	Phthalocyanine blue	Calcium Citrate	Ultrafine	Mud additives	Isocyanuric acid sodium dioxide	Three oxygen iso cyanuric acid sodium
Inlet air temperature OC	150	150	120	150	140	160	200	180	150
First% moisture content	60	45	30	55	40	70	75	25	30
Final moisture content%	0.5	2.0	1.0	1.0	1.0	1.5	5.0	0.2-2	1.0
The actual drying capacity kg / h	80-110	350-380	120-150	160-180	300-350	430-470	290-310	80-120	90-150

Notes: 1. The amount of water is evaporated into the air temperature was 200 ℃, 80 ℃ wind meter 2, the installed capacity of the basic data can be changed according to the material properties. 3, covers an arrangement according to the actual situation, the data in the table are for reference only.
