Fujian, a food company (materials: sweet potato) a food company in Shandong (Material: garlic tablets)

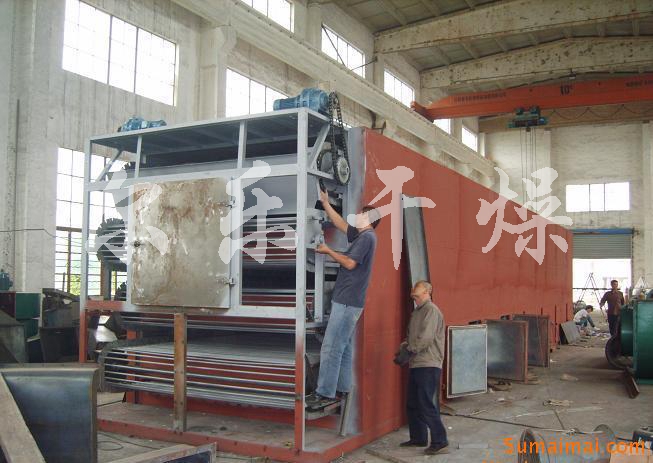

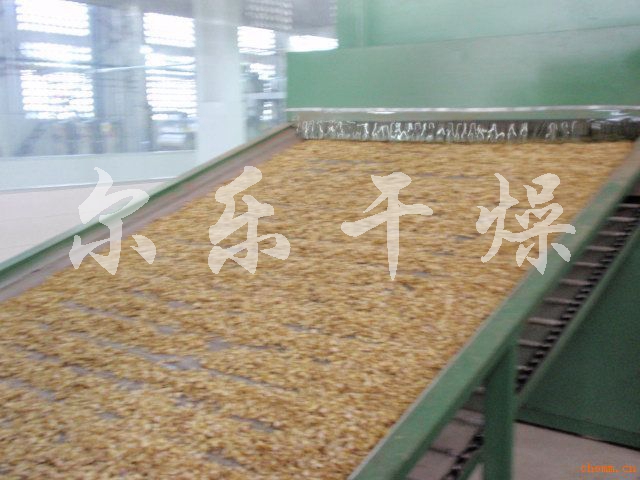

Application client：a food company in Fujian (materials: sweet potato) selection: DW-2-10 meters (five) mesh belt dryerProduct selection：DW multi-belt dryer
Detailed description
product description:
DW Series Multilayer belt dryer are mass-produced with a continuous drying apparatus for better ventilation sheet, strip, dry granular materials, for dehydrated vegetables, catalyst, water content and other types of Chinese Herbal Medicine high, high temperature materials is not allowed particularly appropriate; the series dryer has a drying speed, high evaporation strength, good product quality advantages of the dehydrated cake-like paste materials, granulation or made subject to strip only after drying.
Overview:
DW series of multi-belt dryer is suitable for mass production of low drying rate of hard dry material, compact structure, small footprint, simple operation, easy maintenance, stable operation. According to the drying characteristics of different materials designed to form a circulating hot air drying, hot air circulation oven is extended and improved, widely used in metallurgical additives, chemical, food, packaging and other fields. With technological progress, improving product technology content, multi-belt dryer is equipped to meet the large-scale production, diversification, centralized control, continuous production capacity. With high efficiency, energy saving, easy management advantages.
Technical Parameters:
| model | DW 3 -1.2-8 | DW 3-1.2-10 | DW 3 -1.6-8 | DW 3 -1.6-10 | DW 3 -2-8 | DW 3 -2-10 | ||
| Number of units | 4X3 | 5X3 | 4X3 | 5X3 | 4X3 | 5X3 | ||
| Drying section length m | twenty four | 30 | twenty four | 30 | twenty four | 30 | ||
| Shop mm material thickness | 10-80 | |||||||
| Temperature ℃ | 50 to 140 | |||||||
| Steam pressure Mpa | 0.2 to 0.8 | |||||||
| Steam consumption kg / h | 360-600 | 420-720 | 450-840 | 480-960 | 480-960 | 630-1350 | ||
| Heat transfer area m 2 | 816 | 1020 | 1056 | 1320 | 1344 | 1680 | ||
| Dry strength kgH 2 O / H | 150-450 | 220-550 | 240-600 | 280-750 | 280-750 | 350-900 | ||
| Total machine power KW | 30.8 | 37.4 | 42 | 51 | 56 | 68 | ||
| Outside Total power KW | 35.3 | 41.9 | 46.5 | 55.5 | 60.5 | 72.5 | ||
| Dimensions m | 9.77X2.2X4.5 | 11.77X2.2X4.5 | 9.77X2.6X4.5 | 11.77X2.6X4.7 | 9.77X3.06X4.9 | 11.77X3.06X4.9 | ||
| Total weight kg | 4800X3 | 5780X3 | 5400X3 | 6550X3 | 6350X3 | 7800X3 | ||
|
Note: For drying temperature 250 ~ 350 ℃, the company can be specially designed according to the actual material. |
||||||||
