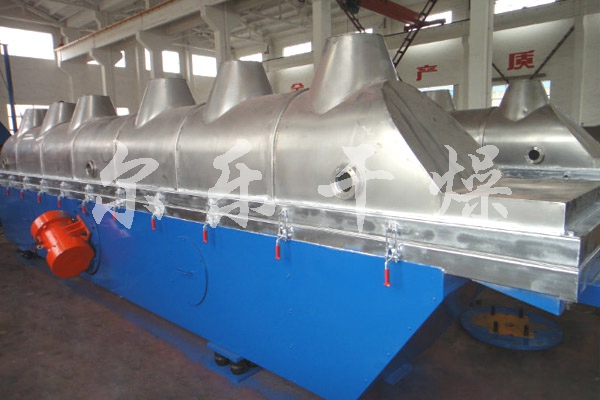

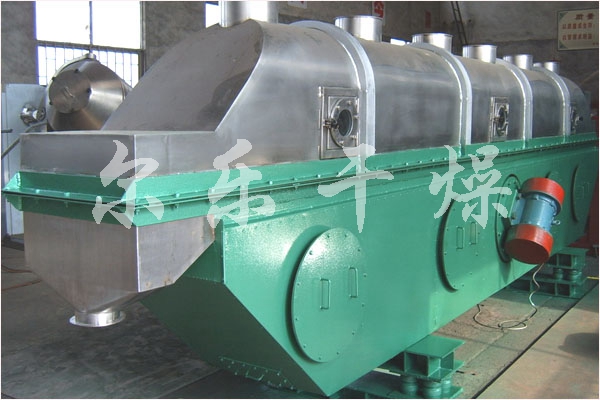

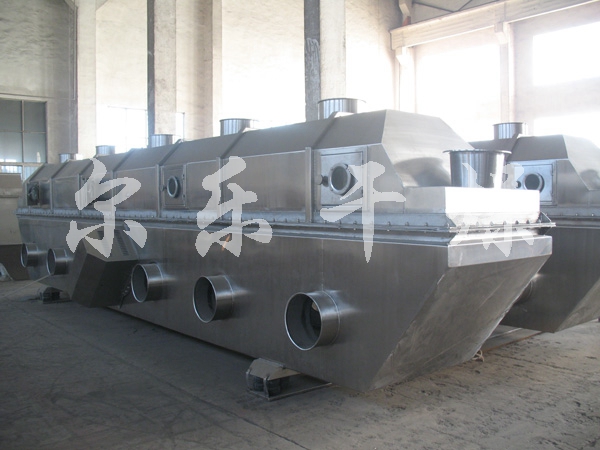

Nanjing, a food company (Material: bread crumbs) selection: 7.5 × 0.75 vibration fluidized bed dryer
Application client：Nanjing, a food company (Material: bread crumbs) selection: 7.5 × 0.75 vibration fluidized bed dryerProduct selection：vibration fluidized bed dryer
Detailed description
How it works: Material from the feed inlet into the machine, in the vibrating force, the material thrown forward horizontally continuous motion, hot air upward through the fluidized bed with wet material after heat, humid air through the dust after the cyclone exhaust port discharge, the dried material is discharged from the discharge port.
Features: ● the use of a vibration source is vibration motor, smooth operation, easy maintenance, low noise, long life, easy maintenance. ● high thermal efficiency, than the average drying means saving more than 30%. Bed temperature distribution without local overheating, fluidized symmetry, no dead phenomenon. ● good adjustability, wide adaptation. Material thickness and movement speed and full uniform amplitude changes in the machine to achieve the stepless adjustment. ● little damage to the surface of the material can be used for drying fragile materials; does not affect work results when material particles are irregular. ● fully enclosed structure, effectively preventing the air space between the material and the cross infection of the working environment clean. ● When used in high-moisture materials for mass production, we can use more than one series of ways to meet user requirements (typical materials: such as polyacrylamide, etc.).
Technical Parameters:
| Size Model | A | B | C | D | IS | F | Weight (kg) |
| GZQ3 × 0.30 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| GZQ4.5 × 0.30 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| GZQ4.5 × 0.45 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
| GZQ4.5 × 0.60 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1670 |
| GZQ6 × 0.45 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 2100 |
| GZQ6 × 0.60 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
| GZQ6 × 0.75 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2840 |
| GZQ6 × 0.9 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
| GZQ7.5 × 0.60 | 7500 | 600 | 1850 | 1000 | 600 | 1850 | 3200 |
| GZQ7.5 × 0.75 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
| GZQ7.5 × 0.9 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
| GZQ7.5 × 1.2 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
| model | Fluid bed area (M2) | Inlet air temperature ( O C) | Air temperature ( O C) | Water evaporation capacity (kg) | Vibration motor | |
| model | Power Kw | |||||
| GZQ3 × 0.30 | 0.9 | 70-140 | 40-70 | 20-35 | ZDS31-6 | 0.8 × 2 |
| GZQ4.5 × 0.30 | 1.35 | 70-140 | 40-70 | 35-50 | ZDS31-6 | 0.8 × 2 |
| GZQ4.5 × 0.45 | 2.025 | 70-140 | 40-70 | 50-70 | ZDS32-6 | 1.1 × 2 |
| GZQ4.5 × 0.60 | 2.7 | 70-140 | 40-70 | 70-90 | ZDS32-6 | 1.1 × 2 |
| GZQ6 × 0.45 | 2.7 | 70-140 | 40-70 | 80-100 | ZDS41-6 | 1.5 × 2 |
| GZQ6 × 0.60 | 3.6 | 70-140 | 40-70 | 100-130 | ZDS41-6 | 1.5 × 2 |
| GZQ6 × 0.75 | 4.5 | 70-140 | 40-70 | 120-140 | ZDS42-6 | 2.2 × 2 |
| GZQ6 × 0.9 | 5.4 | 70-140 | 40-70 | 140-170 | ZDS42-6 | 2.2 × 2 |
| GZQ7.5 × 0.60 | 4.5 | 70-140 | 40-70 | 130-150 | ZDS42-6 | 2.2 × 2 |
| GZQ7.5 × 0.75 | 5.625 | 70-140 | 40-70 | 150-180 | ZDS51-6 | 3.0 × 2 |
| GZQ7.5 × 0.9 | 6.75 | 70-140 | 40-70 | 160-210 | ZDS51-6 | 3.0 × 2 |
| GZQ7.5 × 1.2 | 9 | 70-140 | 40-70 | 200-260 | ZDS51-6 | 3.0 × 2 |
★ evaporation is more than the maximum amount of evaporation.
