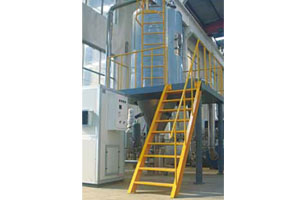

YPG Series Pressure Spray(Congeal) Dryer
The liquid or paste raw material is spraied into minuty liquid drop by pressed spraier draw assistance from pressure of diaphragm pump, and quickly drying through short heat exchange.(10sec.) at last, the powder or small granule is obtained.
Detailed description
Features：
● The dry speed is fast and suitable for drying thermal sensitivity material particularly.
● The finished product is ball granule with uniform size. Its fluidity and solubility are good. The purity of product is high and its quaity is good．
● It applied scope is wide. According to the characteristics of raw material，it can use hot air to dry and can also use cool air to granulate. It has strong adaptability to raw materials.
● Its operation is simple and stable and its control is simple and convenient and is easy to realize automatic operation.
●The product particle diameters, looseness and water contents can be adjusted through changing the operation condition within a certain range.
Description：
The liquid or paste raw material is spraied into minuty liquid drop by pressed spraier draw assistance from pressure of diaphragm pump, and quickly drying through short heat exchange.(10sec.) at last, the powder or small granule is obtained.
Application：
It is suitable for liquid of foodstuff， pharmaceutical， chemical industry， dyestuff，ceramics，agrochemicals，plastic and so on.
Technical parameters：
| 型号 | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| 水份蒸发量Kg/h | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| 外形尺寸（Φ×H）mm | 1600×8900 | 2000×11500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×18800 | 4600×22500 |
| 高压泵压力Mpa | 2-10 | ||||||
| 功率KW | 8.5 | 14 | 22 | 24 | 30 | 82 | 30 |
| 进风温度℃ | 300-350 | ||||||
| 产品含水量% | ﹤5(可达0.5) | ||||||
| 物料回收% | ﹥97 | ||||||
| 电加热KW | 75 | 120 | 150 | 温度低于200度时，具体按实际计算 | |||
| 电加蒸汽Mpa+KW | 0.5+54 | 0.6+90 | 0.6+108 | ||||
| 热风炉Kcal/h | 100000 | 150000 | 200000 | 300000 | 400000 | 500000 | 1200000 |
注：部分参数设计时视不同物料有所调整，以设计为准。
