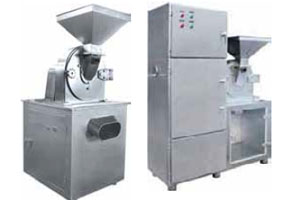

30B/30BX Series Universal Grinder
This machine has wide application and is wide used for pharmaceutical industry, chemical industry, pesticide industry, foodstuff industry, grain industry and so on.
Detailed description
Features：
● This machine has wide application and is wide used for pharmaceutical industry, chemical industry, pesticide industry, foodstuff industry, grain industry and so on.
● This machine uses the relative motion between movable and fixed teech disc, the raw materials to be curshed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials, finally the raw mateials are crushed.
Technical parameters：
| 型 号 | 20B-C | 30B-C | 40B-C | 60B-C |
| 生产能力(kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
| 主轴转速(r.p.m) | 4500 | 3800 | 3400 | 2800 |
| 进料粒度(mm) | 6 | 10 | 12 | 15 |
| 成品细度(目) | 60-120 | 60-120 | 60-120 | 60-120 |
| 电机功率(kw) | 4 | 5.5 | 11 | 15 |
| 吸尘风机(kw) | 1.5 | 1.5 | 1.5 | 2.2 |
| 外型尺寸(长x宽x高)(mm) | 1100x600x1650 | 1200x650x1650 | 1350x700x1700 | 1550x1000x1750 |
