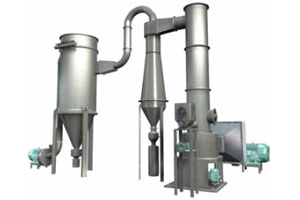

XZG Series High-Speed Rotating Drier
XZG series roating drier is developed by our company, and its techinology is based on advance techinology adored.
Detailed description
Features：
●This machine combines the whirl technology with the luidity, ejection and smashing step technologies.
●The equipment is compact and small in size , high in production efficiency and continuous in the production. It has realized that“a small equipment can perform the large production”.
The drying capacity for this machine is big but its energy consumption is low. Its heat efficiency can go up to more than 70%.
●The material stay time is very short. The quality of the final products is very good. The machine can be used for drying the heat sensitive materials.
●For the negative pressure or the micro-negative pressureoperation, the machine is goog for its tightness and high in the efficiency so as to eliminate the environmental pollution.
Principle：
The hot air enters into the bottom of the drier in tangent direction. Under the driving of the stirrer, a powerful rotating wind field is formed.The paste state materials enter into the drier through the screw charger. Under the powerful function of the stirring vanes at high-speed rotation, the materials are distributed under the function of strike, friction and shearing force. The block state mate-rials will soon be smashed and contact the hot air fully and the materials are heated and dried. The dried materials after the dewatering will g o up with the heatair flow. The step rings will stop and keep the big particles. Small particles will be discharged out of the drier from the ring center and will be restored by the whirl separator and dust remover. The not-fully-dried or big piece materials will be sent to the wall of the equipment by centrifugal force function and be smashed again after they fall down to the bottom.
Application：
XZG series roating drier is developed by our company, and its techinology is based on advance techinology adored.The machine is including many superiority, such as reasonable design, compact stuction, widly utilization, grrat productive capacity,good quality, high effect and save energy, Drying, grinding and sieve are completed in one equipment in once time. It eliminate pollution and the techinology is reached international advance level.
Technical parameters：
| 型号 | 主机内经（mm） | 处理风量（m3/h） | 蒸发水量（kg/h） | 最大装机容量（KW） | 最大高度（m） | 占用平面（m2） |
| XSG-4 | 400 | 1150-2300 | 58-73 | 21.4 | 4.6 | 27 |
| XSG-6 | 600 | 2500-5100 | 130-163 | 34.2 | 5.5 | 39 |
| XSG-8 | 800 | 4500-9000 | 238-297 | 63.5 | 6.0 | 40 |
| XSG-10 | 1000 | 7000-13500 | 345-430 | 68 | 6.5 | 55 |
| XSG-12 | 1200 | 10000-20000 | 515-645 | 94 | 6.8 | 62 |
| XSG-14 | 1400 | 16600-28000 | 730-910 | 130 | 7.0 | 89 |
| XSG-16 | 1600 | 18000-38100 | 962-1203 | 160 | 7.2 | 160 |
注:1.水分蒸发量是以进风温度为200℃、出风80℃计 2、装机容量为基本数据，可根据物料性能改变。3、占地面积根据实际情况布置，表中数据仅供参考。
