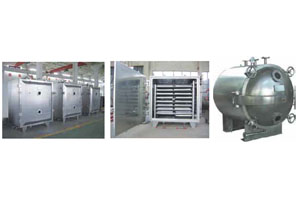

YZG/FZG Series Vacuum Dryer

It is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying. If use vacuum to pump air and humidity out, the dry speed will be faster.

Detailed description

Features：

● Under the condition of vacuum, the boiling point of raw material will decrease and make the evaporation efficiency higher. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved. ● The heat source for evaporation may be low pressure steam or surplus heat steam. ● The heat loss is less. ● Before drying, the treatment of disinfection may be carried out. During the period of drying, there is no impurity material mixed. It is in conformity with the requirement of GMP. ● It belongs to static dryer. So the shape of raw material to be dried should not be destroyed.

Principle：

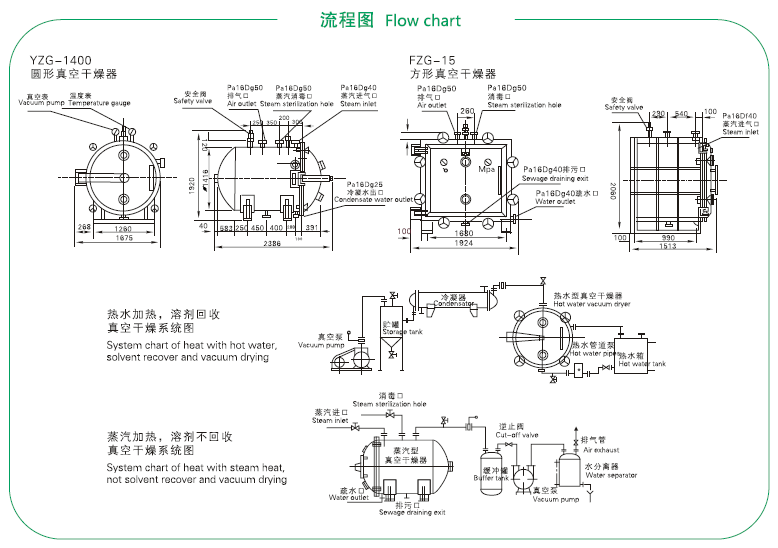

It is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying. If use vacuum to pump air and humidity out, the dry speed will be faster. Note: if use condenser, the solvent in raw material can be recovered. If apply SK series water ring vacuum pump, condenser might be canceled and the investment and every could be saved.

Application：

It is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries.

Technical parameters：

规格	YZG-600	YZG-800	YZG-1000	YZG-1400A	FZG-10	FZG-15	FZG-20
干燥箱内尺寸（mm）	φ600×976	φ800×1247	φ1000×1527	φ1400×2054	1500×1060× 1220	1500×1400 ×1220	1500×1800 ×1220
干燥箱外尺寸（mm）	1135×810× 1020	1700×1045× 1335	1693×1190× 1500	2380×1675× 1920	1924×1720 ×1513	1513×1924 ×2060	1924×2500 × 1513
烘架层数	4	4	6	8	5	8	12
层间距离（mm）	81	82	102	102	122	122	122
烘盘尺寸（mm）	310×600×45	520×410×45	520×410×45	460×640×45	460×640 ×45	460×640 ×45	460×640 ×45
烘盘数	4	8	12	32	20	32	48
烘架管内使压（Mpa）	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784
烘架使用温度（℃）	35-150	35-150	35-150	35-150	35-150	35-150	35-150
箱内空载真空度（Mpa）	-0.1	-0.1	-0.1	-0.1	-0.1	-0.1	0.1
在-0.1MPa，加热温度110℃ 时，水的汽化率(kg/m2·hr)	7.2	7.2	7.2	7.2	7.2	7.2	7.2
用冷凝器时，真空泵型号、功率(kw)	2X-15A 2KW	2X-30A 3KW	2X-30A 3KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-90A 2KW
不用冷凝器时，真空泵型号、功率(kw)	SZ-0.5 1.5KW	SZ-1 2.2KW	SZ-1 2.2KW	SZ-1 2.2KW	SZ-2 4KW	SZ-2 4KW	SZ-2 5.5KW
干燥箱重量（kg）	250	600	800	1400	1400	2100	3200

上述数据。仅供参老。如有特殊要求，本厂提供设计，咨询服务。
